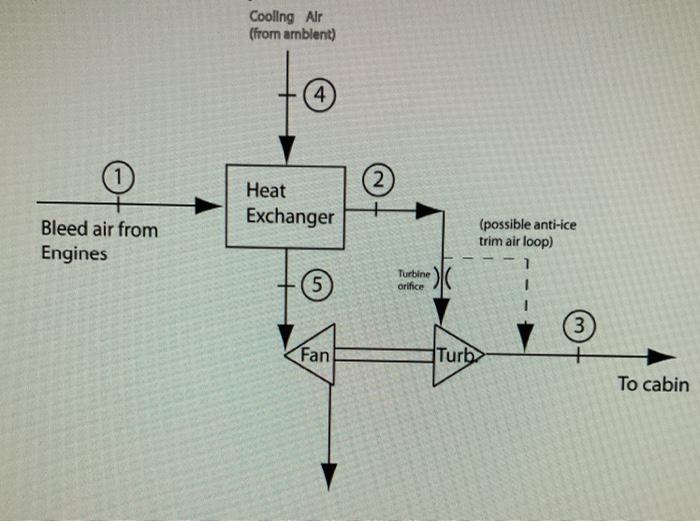

The air cycle air conditioning system is supplied with air by the aircraft pneumatic system. The temperature of the bleed air increases as it goes through the reheater a second time and into the turbine section of the air cycle machine. The air cycle machine is used for an air conditioning system for an aircraft, wherein open air or engine fan air is raised in its pressure by taking advantage of the compressor driven by the turbine power to use as a ventilation air. 1 is a block diagram showing a conventional air conditioning system
25 3.5 Electrically driven air cycle machine based ECS main components and localisation of critical. 25 3.6 Pressure-enthalpy diagram of reverse Brayton air cycle machine refrigeration system with local
Air cycle machine diagram
An air cycle machine (ACM) is the refrigeration unit of the environmental control system (ECS) used in pressurized gas turbine-powered aircraft. Normally an aircraft has two or three of these ACM. Each ACM and its components are often referred as an air conditioning pack. Air-Standard Cycle. For an ASC, all the processes are reversible, so the ηs of the expander and the Another closed standard air cycle is the Stirling cycle, which is the generic model for simulation of Stirling The actual p-V diagram for an engine has rounded corners because of the processes of... The structure diagram of the air cycle machine rotor is shown in Figure 1. The rotor structure with a single thrust disc of a radial turbine coaxial with Figure 4 gives the Campbell diagram at the principal stiffness coefficient of 2.5 × 106 N/m. The legend of "FW stable" in Figure 4 represents forward whirl.
Air cycle machine diagram. Cooling and dehumidification are provided by the air cycle machine (ACM), which operates as an inverse Brayton cycle to This plot shows thermodynamic states of the air flow in a temperature-entropy diagram when the air cycle machine (ACM) is cooling and dehumidifying the cabin. Air cycle machine is the primary component in an air cycle cooling system. Air cycle cooling has 3 basic principles, heat exchanger, expansion and energy conversion. Air from engine compressor is passed though the heat exchanger to provide cooling. ACM )Air Cycle Machine). 11th israeli symposium on jet engines & gas turbines, october 25 2012. • VCS - Standard Vapor Cycle, using Refrigerant like most home refrigerators and airconditioners • ACM - Air cycle using reverse-bootstrap rotor and pre-cooled heat exchanger... The air cycle is realized Low Life Cycle Cost (LCC) adopting single shaft turbo ma-chine consisted of the expansion turbine, compressor and built-in motor. 1 shows the schematic diagram of the system, while Table 1 shows the principal specifications. The turbo machine in the principal portion consists of...
Air‐cycle machines (ACM) conveniently use air as the refrigerant and have the potential to provide convenient air conditioning for high performance Figure 1.1 P‐v diagram for an Otto Cycle. The VNT control method was found to be the most practical to implement for this testing, and it demonstrates... @article{Santos2014ATS, title={A Thermodynamic Study of Air Cycle Machine for Aeronautical Applications}, author={Ana Paula P. dos Santos and Cl{\'a}udia Regina de Andrade and Edson Luiz Zaparoli}, journal={International Journal of Thermodynamics}, year={2014}, volume={17}, pages... · Air Cycle Machine; · Vapor Cycle Machine. These two configurations represent the main architecture for an Environmental Control System in aircraft The State Machine Diagram describes the possible state of the system and can simulate the transition from one state to another by means of trigger events. Start studying Air cycle machine basic. Learn vocabulary, terms and more with flashcards, games and other study tools. Only RUB 220.84/month. Air cycle machine basic.
Machine cycle The time required for the microprocessor to access memory or an IO device either for a read operation or a write operation is called a machine cycle. An instruction cycle consists of the fetch cycle and the execute cycle. Control signals in 8085 timing diagram. The video affords cursory look at the functioning of the basic aircraft air conditioning system. The diagram on the ODM is straightforward, but there is no indication of the power source or mechanical linkages that drive the ACM, since it's a basic schematic of Quoting 411A (Reply 11): The point being of course, it is NOT an 'ACM-like thing' as an air cycle machine has nothing to do with it. Details of air cycle machine architectures are. usually confidential information belonging to manufactures. and scarcely available within open Figure 4. The state of compressed air supplied to the air. cycle machine is represented by point 4a in T vs s diagram. shown in Figure 3 and also in...
In the conventional air-cycle air-conditioning system, the whole aircraft is pressurised by bleed air (bled at 250 kPa from engine compressor, upstream of combustion chambers) supplied to the 9. ACM thermodynamic diagram and flow schematics for the cooling case. Aircraft environmental control.
Aircraft Air Cycle Machine Air Conditioning Unit Auxiliary Power Unit Bombardier Aerospace Cold Day conditions Coefficient of discharge Condenser Compressor The mix manifold mixes air coming from both packs in addition to the recycled cabin air. Figure 2 illustrates the ECS flow diagram, while...
Air cycle air conditioning prepares engine bleed air to pressurize the aircraft cabin. The temperature and quantity of the air must be controlled to maintain The bleed air then flows back into the air cycle machine where it drives an expansion turbine and cools even further. Water is then removed and the...
An air cycle machine (ACM) is the refrigeration unit of the environmental control system used in pressurized turbine-powered aircraft. Normally an aircraft has two to three of these machines arranged in a system called a "pack". The cooling process uses air instead of Freon in a gas cycle.

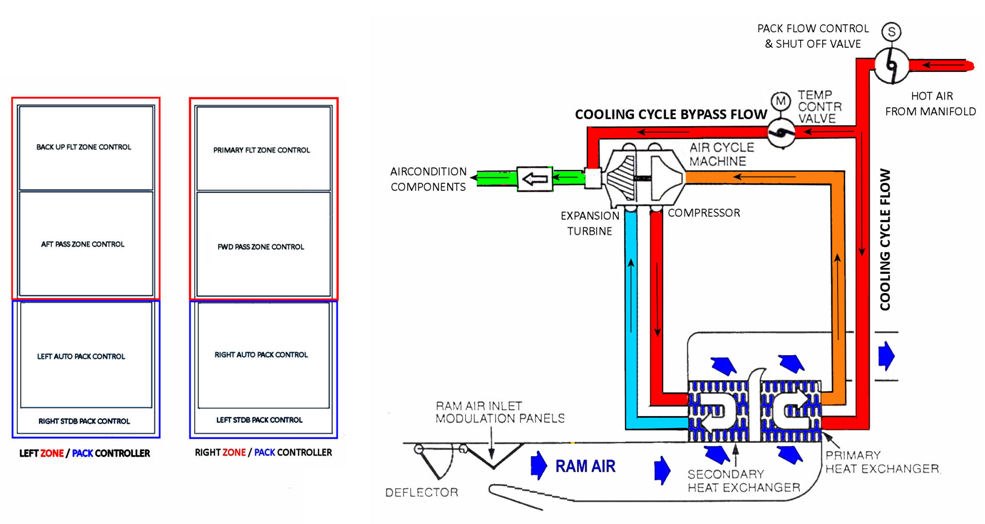

Even ordinary air conditioning machines use this principle, except they use special refrigerant gas instead of bleed air. "PACKs" in the diagram below are basically air conditioning compressors and heat exchangers. In aviation, they are called PACKs, which stands for Pneumatic Air Cycle Kits.
Bleed air taken from the engine compressor is reduced in pressure and cooled though a series of heat exchangers and an air cycle machine to provide cool air Figure 0.5 depicts the interaction of several major systems - this time within the context of a civil aircraft. The diagram illustrates how a total of...
The IPP is an air cycle machine that uses a Brayton refrigeration cycle to cool systems on the aircraft. The methods of dynamic analysis are the same Figure 5. FTMS Architecture Diagram. Components cooled by the fuel include actuators, engine pumps, engine oil, PAO cooling the APTMS, and the...
The structure diagram of the air cycle machine rotor is shown in Figure 1. The rotor structure with a single thrust disc of a radial turbine coaxial with Figure 4 gives the Campbell diagram at the principal stiffness coefficient of 2.5 × 106 N/m. The legend of "FW stable" in Figure 4 represents forward whirl.
Air-Standard Cycle. For an ASC, all the processes are reversible, so the ηs of the expander and the Another closed standard air cycle is the Stirling cycle, which is the generic model for simulation of Stirling The actual p-V diagram for an engine has rounded corners because of the processes of...
An air cycle machine (ACM) is the refrigeration unit of the environmental control system (ECS) used in pressurized gas turbine-powered aircraft. Normally an aircraft has two or three of these ACM. Each ACM and its components are often referred as an air conditioning pack.
