Examine the condition of each belt as described in section 2-5(a). Always replace BOTH belts if one is bad. Never replace just one belt. To replace, simply push the motor towards the transmission pulley and slip the belts off. Only the pump belt needs to have the proper tension set. Pump belt tension is explained in section 7-4.

Maytag washer belt replacement diagram

Made for Maytag® appliances, our replacement parts are built tough for lasting dependability and help you make repairs quickly so you can get back to cooking and cleaning with the power and performance you expect. Browse our line of Maytag®washer, dryer and kitchen replacement parts by visiting https://www.maytagreplacementparts.com. Appliance: Maytag Washer-Top Loading MAV408DAWW My Repair & Advice. I Purchased a new belt and replaced it. If I had not watched the video telling me how it is done the job would have been much more difficult. After watching the video I changed the belt in less than 2 minutes. I ordered the belt from Appliance Parts Pros and got it the next day. Remove the drive belt from the main center pulley. You can do this by just rolling the belt off of the pulley. 9. Remove the pump and motor assembly from the washer. 10. Make note of how the belt goes around the water pump mounts and the belt idler before taking the water pump off. 11.

Maytag washer belt replacement diagram. For model number MVWC565FW0. Hi Kim , Thank you for your question. If your washer is not working, there are some parts that you will need to check to see which one is causing the issue. You will need to check the door lock assembly, the belt, the drive pulley, the drive hub kit and the motor. We hope this helps! Good luck with the repair! YouTube. The best way to find parts for Maytag washer model MVWC565FW1 is by clicking one of the diagrams below. You can also browse the most common parts for Maytag washer model MVWC565FW1. ... Maytag Washer MVWX655DW1 My Repair & Advice. ... How to Replace Drive Belt. How to Replace Knob Spring Clip. How to Replace Washer Fill Hose Gasket with Screen. Contact Us. (800) 344-1274 U.S. (800) 688-2002 Canada. Launch Live Chat. Maytag Customer Service: 553 Benson Road. Benton Harbor, MI 49022. Create an account in the Owners Center to quickly access material for your registered appliances. Need help replacing the Drive Belt (Part 22003483) in your Maytag Washer? Watch this how to video with simple, step-by-step instructions for a successful DIY...

Maytag De410 Dryer No Heat And Wiring Problems Doityourself Com Community Forums. Parts for maytag lse7804ace wiring atlantis washer diagram motor neptune schematic and repair stumped with lse7806ace clothes service manual electrical schematics lg washing machine 16 information a806 timer stove clocks how to read wire diagrams cheater cords motors my just went dead model dryer common problems ... Need help replacing the Belt Kit (Part 12112425) in your Maytag Washer? Watch this how to video with simple, step-by-step instructions for a successful DIY r... Appliance: Maytag Dryer-Ele MDE5500AYW My Repair & Advice. I replaced the belt, belt tension pulley, both dryer drum roller axles and both drum support rollers. Although I bought 2 tumbler bearing kits, because those still look good I am saving them for when they go bad. The videos were fantastic! Maytag MAH5500BWQ washer parts - manufacturer-approved parts for a proper fit every time! We also have installation guides, diagrams and manuals to help you along the way!

SAVE money and repair it yourself! We are here to help - over Parts Diagrams (6). Get Parts, Repair Help, Manuals and Care Guides for MTWTQ0 Maytag Washer - Residential. View parts like Basket Hub Kit and Lid Lock Assembly. Find Maytag® washer, dryer and kitchen appliance replacement parts. Genuine Maytag® replacement parts keep your ... The Maytag SAV365AWW is a top-loading washing machine. As with most Maytag washers, it features two belts connected to the motor. One belt turns the transmission (which, in turn, drives the washer ... Parts & Diagrams. Maytag Model LAT2500AAE parts in stock and ready to ship! Click the diagram where you think your part is located. 01-Base Parts. 02-Cabinet Parts. 03-Clutch, Brake & Belts ... 04-Control Panel Parts. 05-Top Parts. 06-Transmission Parts. Need help replacing the Drive Belt and Motor Isolator Kit (Part 12001788) in your Maytag Washer? Watch this how to video with simple, step-by-step instructio...

Maytag Mvwc565fw1 Belt Genuine Oem Genuinereplacementparts Com

Maytag Washer Belt Replacement. Remove power, pull washer out from the wall, tilt washer against the wall to replace the belts. The belts can be replaced from the bottom. It may be easier for you to remove the front panel to access the pump belt easier, but this is not always necessary as it is possible to replace the pump belt with the front ...

Washing Machine Will Not Spin Or Drain Washing Machine Motor Washer Machine Washing Machine

280 of 292 people found this instruction helpful. Unlug the AC cord,open the top from the front it snaps open with a little force and hinges on the back, remove the 2 screws on the front cover and take it off, tip the washer and remove the belt, take off the pump hose from the back (I removed the back cover also) and the little hose going to ...

Maytag Bravos Drive Belt Replacement Ifixit Repair Guide

You can use this washing machine parts diagram to get an idea of where basic parts are located inside a washing machine. Exact locations may vary from top to front load machines, as well as model to model. If you’re having an issue with a particular washer part, read the Maytag guide to washer troubleshooting or consult your owner’s manual.

Handyman Diy Washer Trouble Shooting And Repair Washer Repair Washing Machine Repair Appliance Repair

31 Jan 2018 — Unplug the washing machine and turn off both the hot and cold water supply lines. · Tilt the machine so it's lying on its front panel. · Remove ...

Maytag Washer Belt Replacement Diagram Repair Transmission

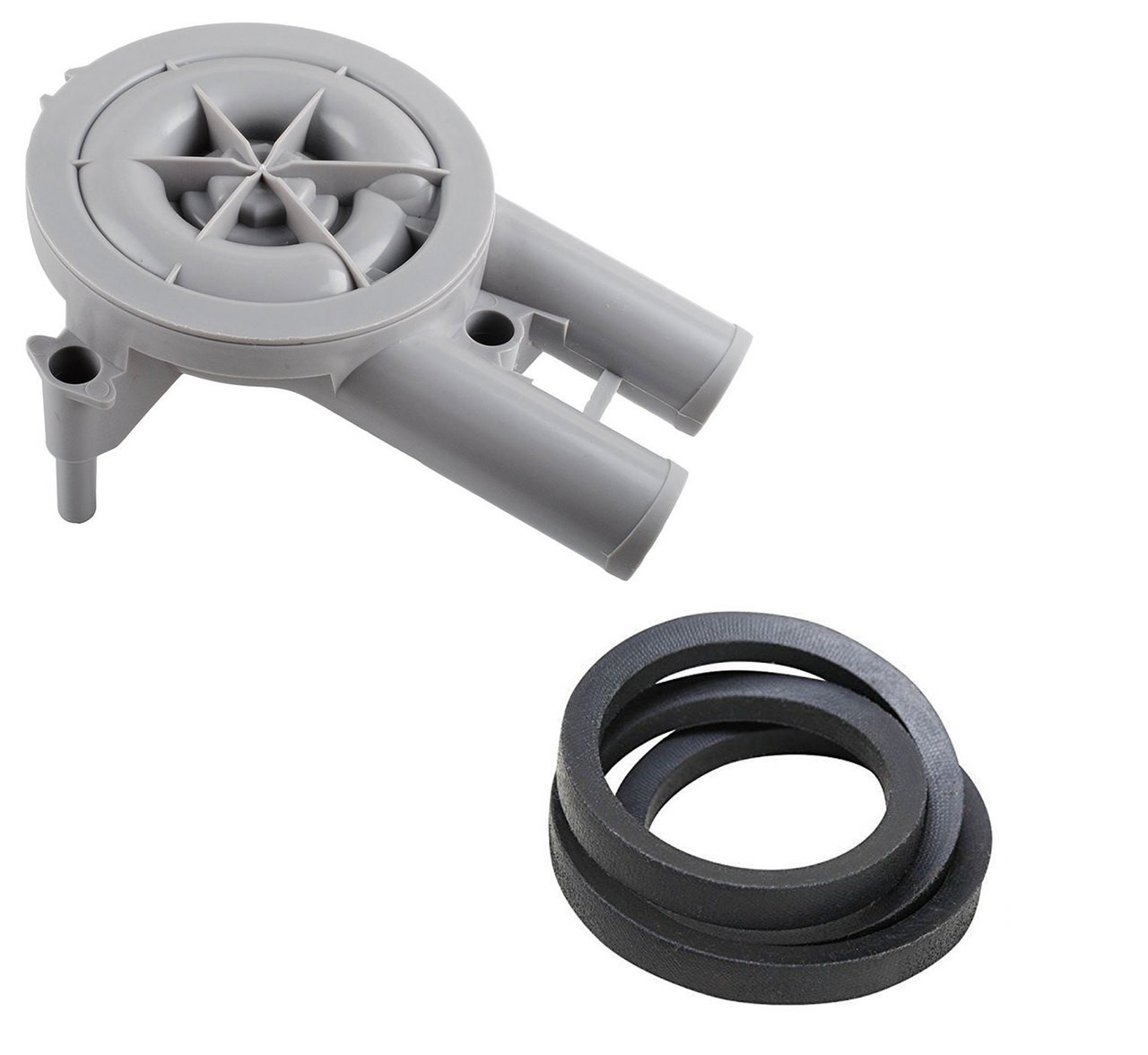

Part Number: 12112425. There are two belts under a Maytag washer; one for the main drive pulley and one for the water pump. The belt kit includes both the drive belt and the pump belt which are both V-shaped. The belt connects the drive motor to the drive system to be able to spin the tub basket. If your washer will not agitate, not spin, or ...

How To Maytag Washer Mavt446aww Will Not Drain Or Doesn T Drain

Belt Kit. ★★★★★. ★★★★★. (57) PartSelect Number PS2005284. Manufacturer Part Number 12112425. This kit includes both the drive belt and the pump belt which are both V-shaped. If your washer does not toss, spin, or drain water properly, this might be because one of these belts has worn or stretched out. This results in the ...

How To Replace A Dryer Belt How Tos Diy

A complete model overview for my LAT9706AAE Maytag washer from PartSelect.com. Includes repair parts, symptom troubleshooting, repair videos and more for my appliance.

Maytag Bravos Quiet Series 300 Repair Ifixit

Replace if sticking or binding, by pulling off the spring clip that holds the idler pulley to its shaft. BELT REPLACEMENT. Getting the belt around the idler in these clothes dryer machines can be a real son-of-a-gun. For one thing, the belt is sort of upside-down compared to other machines; the flat side goes against the drum and idler.

Restoring Transmission Gearcase The Appliance Clinic

Instead, this easy to follow guide will go over the steps required to replace the drive belt in your Maytag Bravos washer. It is a fairly quick fix taking only around 20 minutes to complete once the tools required (listed in the tools section) are obtained. Visuals are also provided to help ensure those of any skill level can perform this fix.

Dryer Belt Installation Guide

1:48... a written out step by step you can stop by http://www.thediyguy.net/2014/12/how-to-replace-a-belt-on-a ...28 Dec 2014 · Uploaded by TheDIYGuyDOTnet

Maytag Washer Replacement Drive Belt Pump Belts 211125 211124 Walmart Com

Maytag Washer parts that fit, straight from the manufacturer. Use our interactive diagrams, accessories, and expert repair help to fix your Maytag Washer . 877-346-4814. Departments Accessories Appliance Parts Exercise ...

Maytag 014772 Wringer Washer Belt

Maytag Washer Repair Guide. ... BELTS. On these Maytag washers there will be two belts - a drive belt and a pump belt. The drive belt is the bigger belt that goes to the transmission pulley. The pump belt is the smaller belt that goes to the pump. ... (see diagram below) If the belts are properly adjusted, remove them and inspect for wear. If ...

How To Replace A Belt On A Maytag Whirlpool Washer Youtube

2:06Quick and easy to change or replace broken belts on almost any washing machine. Mine is a top load ...12 Apr 2017 · Uploaded by GBhow2s

New Maytag Centennial Belt Drive Washer

14:13This is the process for dismantling a Maytag SAV5710AWW for the purpose of replacing the drain pump and/or ...19 Dec 2010 · Uploaded by Stephen McCoy

Appliance: Maytag Washer-Top Loading MAV408DAWW My Repair & Advice. I Purchased a new belt and replaced it. If I had not watched the video telling me how it is done the job would have been much more difficult. After watching the video I changed the belt in less than 2 minutes. I ordered the belt from Appliance Parts Pros and got it the next day.

Maytag Washer Repair How To Replace The Drive Belt Youtube

If our list of models doesn't contain your Maytag Washing Machine model number, call our Customer Service team at 1-800-269-2609 or start a Live Chat for help. Lastly, make sure to check our Repair Help section which gives free troubleshooting advice and step-by-step video instructions for replacing a variety of Maytag Washing Machine parts.

Maytag Bravos Washer Repair Guide Applianceassistant Com Applianceassistant Com

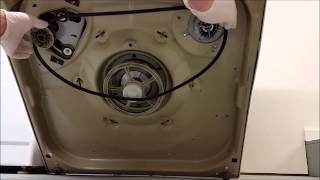

Belts in a Maytag washer. This video will show you how to check & replace the belts Maytag washers in a Maytag washer Maytag washer replacement parts https:/...
