1974 Mercedes 450Sl Power Antenna Wiring from www.audiforums.com. Print the wiring diagram off plus use highlighters to trace the signal. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. 1 trick that We 2 to printing a similar wiring plan off twice. According to the 76 wiring diagram, the antenna has three power wires going to it. One is ground and the other 2 are +12v. The switch determines which one of the 2 are powered. One wire is for up, the other for down.

I used the blue (switched) wire from the replacement antenna to connect to the green factory (switched) wire on the factory antenna's wiring pigtail. The red (power at all times) is connected to the battery-positive post. The black is grounded to the fender (using one of the mounting screws under the hood) and the antenna cable itself was ...

Power antenna wiring diagram

1994 System Wiring Diagrams Mazda - Miata AIR CONDITIONING A/C Circuit. SYSTEM WIRING DIAGRAMS Article Text (p. 2) 1994 Mazda Miata For Yorba Linda Miata ... POWER ANTENNA Power Antenna Circuit. SYSTEM WIRING DIAGRAMS Article Text (p. 19) 1994 Mazda Miata For Yorba Linda Miata Discussion Starter · #2 · Aug 29, 2009. Pictures of the Boosters and Connectors. Here are some pictures of the antenna boosters, and the connectors where the missing cable would connect. I'm looking for a way to obtain these missing cables, and a wiring diagram to show me where they are supposed to go. VW, and two dealers have been absolutely ... TV Antenna wiring diagram. 1. A short coax cable is ran from the TV antenna output to the preamplifier input. Our 2.5 foot cable works well for the EZ HD antenna. The 4 foot cable is best for the HD Stacker antenna. 2. From the preamplifier output run coax cable to the ground block. (Antennas mounted indoors do not require a ground).

Power antenna wiring diagram. Power Antenna Relay Diagram - Hello. I'm working on my cousin's 1978 Chevrolet Monte Carlo and he asked me to try and fix the power antenna. There is power and ground at the relay switch, and the wiring coming from the power antenna seems solid, but there is no movement on the mast. I disconnected t Power antenna wiring diagram. Jump to Latest Follow 1 - 9 of 9 Posts. matt2.3 · Registered. 1992 W201 190E 2.3 8v, 1986 BMW 635CSi Joined Oct 23, 2009 · 436 Posts . Discussion ... Car Power Antenna Wiring Diagram - wiring diagram is a simplified suitable pictorial representation of an electrical circuit. It shows the components of the circuit as simplified shapes, and the skill and signal connections amongst the devices. A wiring diagram usually gives guidance more or less the relative face and concurrence of devices ... Electronics - power antenna wiring - ok so i have an 88 iroc with power antenna ... I can draw you up a diagram for 2 relays sometime but it wont be in the ...

The wiring diagram included with the bulletin shows only a power antenna connector by the heater/AC control head. Has anyone done this that can tell me where the connector/plug is located that connects to the wires coming from the antenna motor? Besides mounting a new antenna, You will also need to know how to wire the new power antenna up. After watching this tutorial you'll be well informed enough ... Mazda Miata Wiring Diagrams 1990 To 2002 Forumz Chat Forums. Power antenna mazda mx 5 miata m 1993 1997 manual part 122 2003 remote wire tap in trunk forum na wiring harness work diagram 1990 parts help non bose metra pins for sony cdx1000rf all diagrams revlimiter net s2000 starter on gm car stereo swap into my 97 tdr shorty amplified 90 s2k a to mct023u2 radio pinout mike walsted s bosectomy ... Wiring Aftermarket Power Antenna into Factory Wiring ... PS - I looked at the wiring diagrams for each year 87-92 and they all appeared to have the same hookup to the original power antenna so this should be able to be applied to all years. Save Share. Reply.

Reason, if you turn the car off and the power wire is ignition switched it will stop retracting as soon as key is off. With 12V+ constant it will finish retracting when you turn the car off. New replacement Hirschmann power antennas have black, white, and red wires ( I opened a box to check) and wiring diagram suggests constant 12 V+. Many good image inspirations on our internet are the most effective image selection for Car Power Antenna Wiring Diagram. . If you are satisfied with some pictures we provide, please visit us this page again, don't forget to fairly share to social media you have. Please see more wiring amber you will see it in the gallery below. . You will see that the relay swaps power and ground between the 3 wires. To make this work with your aftermarket antenna, you will need to bypass the antenna relay and send the constant 12 volts and the switched 12 volts down to the antenna motor. You can use the existing wiring to accomplish this. Here is some info from my 86 manual. Audio (and aftermarket electronics) - Power Antenna Wiring - On my ... Even without a wiring diagram in front of me, I can tell you that the ...

power switch. Solder blue wire as shown in figure 3. Reassemble radio top or back cover. Then reinstall radio in vehicle. Connect the new blue wire from the radio to the blue wire from the antenna. Connect coaxial cable from antenna to radio. C) The red power wire from antenna can be connected at fuse block, ( as shown in figure 2.) battery, or ...

1980-1982 Corvette Power Antenna Wire Schematic and Diagnostic Tech Help. ... Before you click on supporting document, view the two front side pictures. There is ...

I finally did manage to find a wiring diagram online, and when I hooked it all up, nothing worked. The 5091 has 3 wires coming out of the unit; ...

In older vehicles, wiring remote turn on to power antenna was very common and worked just fine because when the radio was on, the power antenna was up and working. But in newer vehicles, the power antenna may only be receiving power when the radio is in AM/FM mode. If you switch to Aux input, CD, satellite radio, etc… the power antenna wire ...

Winegard Antenna Wiring Diagram. Mount power supply in wall with screws provided and attach TV set cable to jack on front. Connect band separator to VHF and. UHF antenna terminals of TV set. BEFORE YOU MOUNT ANTENNA: Decide location of power supply before mounting your antenna. A wiring diagram, Figure 1, will help you determine the.

Factory Alarm, Power Accessories, and Tailights: Diagram show most power accesories: courtesy lighting, power seats, sunroof, power antenna, opera lights (Limited only I guess), power locks, and power windows. Download all 8 Diagrams. All 8 diagrams in a zip file. Virus Checked with AVP, but feel free to double check before opening. :-). System ...

The blue wire is most likely for for fully automatic mode. Apply 12V+ to this lead will make it go up. Removing it will make it go down. This would connect to the power antenna output of the radio (also usually blue on all aftermarket radios). The other two leads are probably for manual mode and would require an included toggle switch.

I'm pretty sure it's not as simple as putting the switch on one of the wires -- has something to do with switching the polarity of the ground ...

SYSTEM WIRING DIAGRAMS Article Text (p. 32) 1997 Mazda Miata For Yorba Linda Miata . Title: Print Created Date: 5/10/2003 11:55:38 AM

I have installed the Kenwood aftermarket stereo (with HD radio and Sirius built-in). I am successful except that I am having trouble with the power antenna. According to the original radio wiring diagram, I believe from connector A pin 9 is the "ant" control output. The Kenwood has an antenna con...

Subscribe Now:http://www.youtube.com/subscription_center?add_user=ehowtechWatch More:http://www.youtube.com/ehowtechWiring a new car antenna typically requir...

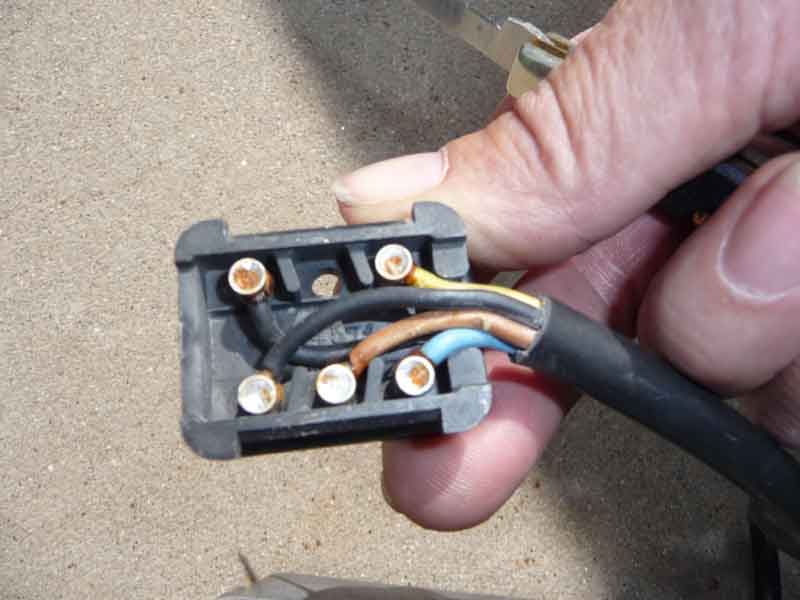

The problem is that the power contector isn't made into the 95 wiring. The antenna has five wires going into it and I need to know what they are for. I have a old factory service manual but since it is older it does even list a power antenna. I have done a search and having come up with anything. So any help you can give me would be greatly ...

The red wire is hooked to a constant 12v source, the green wire is hooked to a conditional 12v source, usually a power source from the radio that is controlled with the radio on/off switch and the remaining black wire is connected to ground. The green wire provides power to raise the antenna. When the power from the green wire is removed(i.e ...

here this diagram electric for power anten with 2 wires or 3 wires as the riviera. there are 2 relays. on the new power antenna (as you can buy on the internet) you just have to find the 2 wires that feed the motor of the new power antenna + and - and you don't use the wire of autoradio signal.

Installation of an Electric or Powered Antenna is fairly simple, you just need to ensure you have adequate space under the wing for the motor body of the antenna (or use the PA-02 remote motor antenna). You will also need to run power to the antenna along with the coaxial lead. Wiring the antenna is simple, there is a constant (+12v) feed ...
