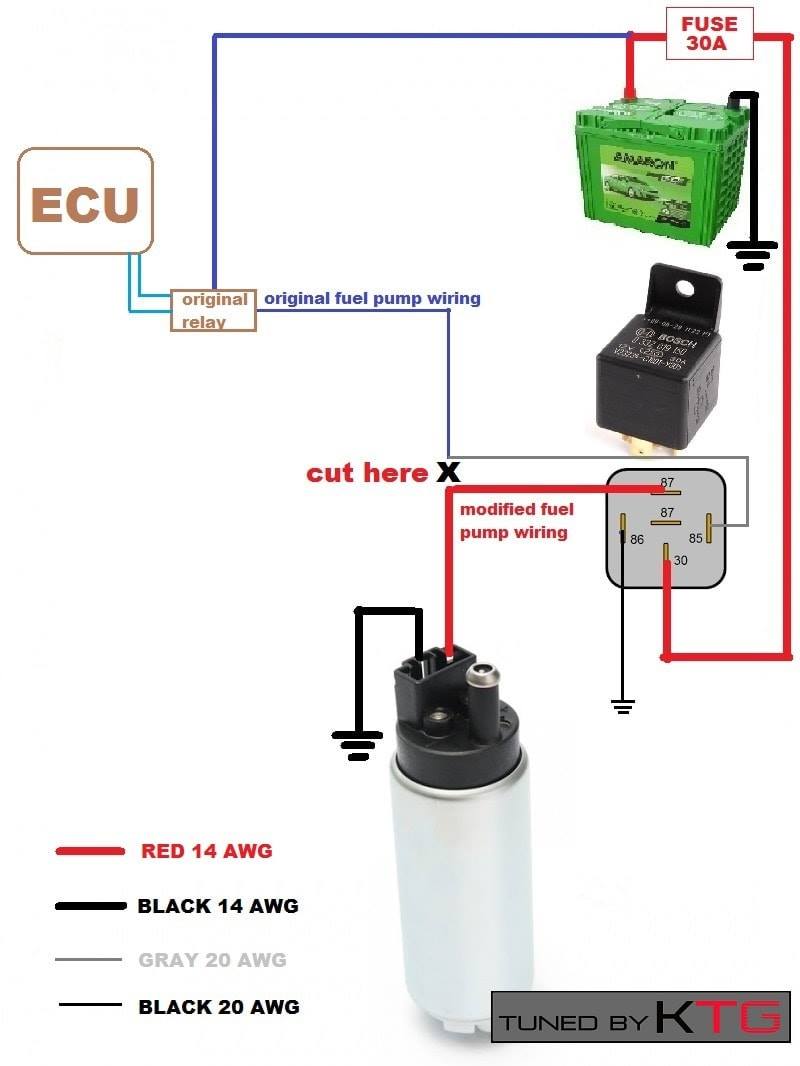

Basic Safe Electric Fuel Pump Wiring Diagram This is the basic wiring diagram for SAFE electric fuel pump wiring. The diagram is color coded per circuit and only a few things may need to be said. Fuel pump wiring for the RED circuit is generally going to carry a much higher current than the relay. So use a larger gauge wire for lower voltage drop. Fuel Pump Power Source: The fuel pump power source must meet these standards: 1. Switched by the ECU (not manually by the user) through a 30 amp relay. 2. Protected by a 30 amp fuse. 3. At least 12 AWG wire All of the requirements are true for the fuel pump power wire provided by the Sniper, Terminator, and many other EFI Systems.

Part Number: 42086FA041. Wiring Harness. Fuel Pump Connector. Fits Forester, Impreza, STI, WRX. 18 people have looked at this part recently. Diagrams and Kits. What This Fits.

Fuel pump connector diagram

Shop for New Auto Parts at 1AAuto.com http://1aau.to/c/65/q/fuel-pumpIn this video, Brian gives a few tips on how to connect your GM fuel pump adaptor🔧 List... See attached parts diagram for a Ford 3000 tractor. Looks to me that it goes to the fuel pump first, then the sediment bowl. Your tractor has a number of fuel screens. 1) There is a screen attached to the fuel tank shutoff valve and sits up inside the tank. 2) There is a screen in the inlet to the fuel pump. Description: Delphi Fuel Pump Wiring Diagram Precise Fuel Pump Wiring Diagram in Delphi Fuel Pump Wiring Diagram, image size 611 X 801 px, and to view image details please click the image.. Here is a picture gallery about delphi fuel pump wiring diagram complete with the description of the image, please find the image you need.

Fuel pump connector diagram. What I really need is a full wiring diagram from the trunk fuse box to the fuel pump. This is what I've figured out so far: large blue/orabge wire: I assume this is the 12vdc power in to the fuel pump and it now reads 0vdc with the ignition on. Posts: 129. fuel pump connector. I nned some help. My 98 4runner SR5 that I bought a few weeks ago has ALOT of hack job repairs. A few days ago I dropped the tank to fix a vent tube issue. while I had the tank down, I noticed that whoever dropped the tank previous and did a BAD vent tube repair did not disconnect the harness from the fuel pump ... Replaced the fuel pump a couple of days later, and verified that it worked with 12V. I also tried out the old pump in a bucket of water and it seemed like it had problems (although now I'm not so sure), because it had fuel spurting out the top of the pump where the electrical connector is. Unfortunately the new pump didn't fix the problem. Hey all, I got a 97 2.5 tj, the connector right in front of my skid plate going to the fuel pump is gone and straight wire put back. I've fought with it 4 times counting tonight after breaking down due to losing power. I need both ends of the connector that goes there so I can put it back right...

Installed new fuel pump, need wiring diagram for it. new pumps now come with a new universal so we had to re-wire it from the pump to the car, still does not run. no fuel getting from the pump, pump not. the pump is out the old pump is 3 wire conector replacement pump conector is a new gt 4 wire connector and the instructions wire color doesn't match up to what I have Chevy Mechanic ... On your fuel pump Grey is fuel pump power, Black pump ground, Purple is signal from fuel sender and purple with black is low reference fuel signal (ground) Can you look at the connector below and match up the wire colors you have to the terminals labeled? for instance is term A orange?, ect. Description: Installing A Fuel Pump With A New Harness Connector On A 1999-2003 pertaining to Delphi Fuel Pump Wiring Diagram, image size 590 X 400 px: Description: Airtex Fuel Pump Wiring Diagram Gm Fuel Pump Wire Harness Repair pertaining to Delphi Fuel Pump Wiring Diagram, image size 640 X 447 px: Truly, we also have been remarked that delphi fuel pump wiring diagram is being one of the ... Going back to stock. Anyone have the wiring diagram so I can see what color wires go where on the female plug for the fuel pump? It's a 4 prong plug on the pump. I see a small green, small yellow with purple stripe. Large white with purple stripe and a large yellow with grey. Thanks in advance!!

I am replacing a fuel pump on a 2002 Suburban 1500 4x4 5.3 Flex Fuel. The fuel pump is a Delphi FG0811 and comes with a square 4-pin connector on the pump with flat pins said to be OEM. The pump had once been replaced with an different pump that required the OEM female connector/harness be replaced with a flat connector which came with that pump. You splice it in to the existing fuel pump assy. 05 has 3 wire, 06 has 4 wire then it's back to 3 wire until 09. Looked at the wiring diagram and the '06 4 wire pump looks like they added another resistor to the fuel pump and an external resistor. 4th wire goes to the instrument cluster so not real sure what it's for since the 3rd wire on the ... Need the diagram for the fuel pump its self was replacing fuel pump and 3 prong connector broke. So now i'm not sure which wires go where? ... You got 2secs to check for power at the gray wire on the fuel pump connector-if its there and the fuel pump is till not pumping check the ground side and also look for a voltage drop on the gray wire- Install an in line fuse of 10 15 amps and attach to pin 30 of the relay using 12 10 gage wire. Fuel pump inertia switch wiring diagram. Here is a picture gallery about relay 4 pin wiring diagram complete with the description of the image please find the image you need. How to test a 4 pin relay electronic onoff switch also with connector led light.

No fuel pressure at the fuel rail, I tested the fuse and relay and both had power and there was power at the connector under the left rear seat. I figured fuel pump for sure at that point. I bought the right side fuel pump and put it in and no joy. What I've determined is when the connector is plugged in on the left side the fuel pump doesn ...

It is recommended that the wiring connector be replaced with the pump to avoid unnecessary problems. * Tech Note- When replacing the fuel pump harness connector be sure to remove as much of the old wiring as possible. For example, if the connector had a poor connection this would create a resistance problem resulting in heat. Precision fuel pump wiring diagram also wiring diagram for a dodge ...

7 INSPECT FUEL PUMP ASSY (See page 11-7) NG REPAIR OR REPLACE FUEL PUMP ASSY OK 8 CHECK HARNESS AND CONNECTOR(CIRCUIT OPENING RELAY - FUEL PUMP, FUEL PUMP - BODY GROUND) (a) Remove the circuit opening relay from the instrument panel J/B. (b) Disconnect the F14 fuel pump connector. (c) Measure the resistance between the wire harness side ...

Fuel Pump Install Wiring Instructions Page 2. Instructions: If the vehicle body harness wiring does not match any of the. combinations show above, refer to the wiring identification diagram and the. vehicle service manual or equivalent to determine the correct wiring alignment. for the new GT280 Electrical connector.

Disconnect the circuit connector closest to the pump and perform circuit tests from that point.A substitute load such as a HP6545 (Plastic) sealed beam must be wired in series instead of the fuel pump. (Wire both the high and low beam in series to simulate a 5 amp load.) DO NOT“dry” test a pump or perform any electrical tests with an open fuel tank present. Note: The battery should be ...

1997 Jimmy Fuel Sender Blazer Forum Chevy Forums. Getting fuel gauge to work on 5 3 wiring diagram blazer 1997 s10 pump s 10 forum buffer module i changed the sender in my 99 and voltages pulled tank a 97 chevy diagrams repair guide have 4x4 v6 seem be staying past full how wire reads test connector relay location jimmy 1996 10pick up truck instrument panel fuse box forums diaghram for 87 4 ...

Be sure to follow the precautions stated in the manual. Once you know the pump works, then connect it and use the Techstream active test feature (see 1NZ-FXE Fuel: Fuel System: On-Vehicle Inspection, step 2) to run the pump; if that fails, the trouble is probably in the wire harness or connector.

Cadillac Escalade Fuel Pump Wiring Diagram Fuel Pump Connector with regard to 2003 Trailblazer Fuel Pump Wiring Diagram by admin From the thousand photos on the web with regards to 2003 Trailblazer Fuel Pump Wiring Diagram, we all choices the very best series using ideal quality exclusively for you, and now this photos is considered one of pictures collections in your greatest graphics gallery ...

Fuel Pump Install Wiring Instructions Page 2. Instructions: If the vehicle body harness wiring does not match any of the. combinations show above, refer to the wiring identification diagram and the. vehicle service manual or equivalent to determine the correct wiring alignment. for the new GT280 Electrical connector.

The connectors are two different sizes, for the larger wires for the ground and the supply for the fuel pump, and the smaller ones for the fuel stemming unit. Make sure you crimp them firmly, and make sure you don't get any of the insulation trapped in between the electrical connective crimp.

Wiring GM fuel pump

A new OEM fuel pump with sender is $125 on your doorstep standard shipping from www.bmaparts.com and use SPECE30 discount code. Order today, you should have it Tues. Plug the pump connector back in, take the butt of a hammer and bang on the metal retaining ring, it will likely jar the pump into running for a short period of time.

Installed new fuel pump, need wiring diagram for it. new pumps now come with a new universal so we had to re-wire it from the pump to the car, still does not run. no fuel getting from the pump, pump not. the pump is out the old pump is 3 wire conector replacement pump conector is a new gt 4 wire connector and the instructions wire color doesn't ...

Fuel pump connector wiring diagram for 2003 toyota 4runner 4.7l engine Wiring diagram for the connector on harness for the fuel pump Posted by Mark Johnson on Jun 06, 2016
