The Al-Si phase diagram is a straightforward, classic example of a eutectic system where each element has little, if any solubility in the other. Aluminum melts at 660.452 °C while silicon melts at 1414 °C. The diagram, from Murray and McAlister (Vol. 8, Metals Handbook, 8th ed., 1973, p. 263), shows the eutectic at 12.6 wt. % Si and 577 °C. Due to large surface to volume ratio, phase transformation of materials at nanoscale occurs at lower temperatures compared to bulk materials. The changes in the equilibrium phase diagram with the change in particle size of the constituents of Al-Si system has been calculated with the help of classical theory employing CALPHAD method for calculations having size less than 10 nm.

Eutectic Phase Diagram of Al-Si Analysis. Ask Question Asked 2 years, 9 months ago. Active 2 years, 9 months ago. Viewed 1k times 0 $\begingroup$ Hello, How can I know from this phase diagram: 1. The composition of the alloy Al-Si that allows precipitation to occure? 2. The range of temperatures where the Al-Si is soluble?

Al si phase diagram

Al-Si-Cu(-Mg) alloys dominate the market for power train components such as engine blocks, cylinder heads, pistons, and die castings where strength at temperature and/or wear resistance is more important than ductility. Schematic Al-Si phase diagram showing the composition ranges for the most common foundry alloys The Al-Si Phase Diagram The binary Al-Si phase diagram was initially studied by Fraenkel of Germany in 1908. It is a relatively simple binary diagram where there is very little solubility at room temperature for Si in Al and for Al in Si. Thus, the terminal solid solutions are nearly pure Al and Si under equilibrium conditions. The Al-Si Phase Diagram - Volume 15 Issue S2. To send this article to your Kindle, first ensure no-reply@cambridge.org is added to your Approved Personal Document E-mail List under your Personal Document Settings on the Manage Your Content and Devices page of your Amazon account.

Al si phase diagram. The Al-Si Phase Diagram Aluminum has a wide range of commercial applications due to its unique combination of good corrosion resistance, light weight, good mechanical properties, ease of fabri-... Al si phase diagram pdf, For example, the phase diagram teaches us about melting and solidification temperatures, the solidification sequence, equilibrium phases that can form, solubility. Binary phase diagrams "map out" the relationship between composition and phase phases. The Al-Si phase diagram, a diagram of considerable commercial significance, is the starting point Examples of the ... The Al-Si phase diagram, a diagram of considerable commercial significance, is the starting point for developing more complex alloys and for understanding their behavior. Si is a common impurity in aluminum alloys, but it is also a deliberate alloying addition in both cast and wrought Al alloys. A l-Si Phase Diagram - note eutectic at 12.6 wt% Si liquid and 577 C. l-Si Phase Diagram - note eutectic at 12.6 wt% Si liquid and 577 C.

A high-efficiency diffusion-multiple approach was employed to map the phase diagram of the Nb-Al-Si ternary system which is very valuable for the design of niobium silicide-based composites. These composites have high potential as a replacement for Ni-base superalloys for jet engine applications. Feb 02, 2020 · The Al-Si Phase Diagram The binary Al-Si phase diagram was initially studied by Fraenkel of Germany in 1908. It is a relatively simple binary diagram where there is very little solubility at room temperature for Si in Al and for Al in Si. Thus, the terminal solid solutions are nearly pure Al and Si under equilibrium conditions. Which is the ... Phase diagram reproduced with permission from Mikael Schalin, Royal Institute of Science and Technology, Stockholm. Aluminium-silicon alloys form a eutectic at 11.7 wt% silicon, the eutectic temperature being 577 oC. This represents a typical composition for a casting alloy because it has the lowest possible melting temperature. The Al-Si Phase Diagram The binary Al-Si phase diagram was initially studied by Fraenkel of Germany in 1908. It is a relatively simple binary diagram where there is very little solubility at room

The phase diagram contains two solid solution phases (α-Al) (FCC_Al) and diamond cubic Si (Diamond-A4), a liquid phase, and three mixed phases; FCC_Al + Diamond-A4, liquid + FCC_Al, and liquid + Diamond A4. The melting points of Al and Si are 932.77 and 1687.73 K (659.62 and 1414.58 °C), respectively. The eutectic composition in the high-purity Al-Si system is 12.6 wt.% Si, and the composition ranges for hypoeutectic alloys and hypereutectic alloys are slightly different than what were given on page 1. In Laboratory Unit 2 we will refer to the phase diagram shown below, but we will use the approximation that 12 wt.% Si is the eutectic composition. Section-Editor: Hiroaki Okamoto (Phase Diagrams) Cite this content Pierre Villars (Chief Editor), PAULING FILE in: Inorganic Solid Phases, SpringerMaterials (online database), Springer, Heidelberg (ed.) SpringerMaterials Al-Si Binary Phase Diagram 0-0.008 at.% Calculated phase diagram of the Al-Si system [1997Feu] Figure 1 from evaluation report: Al-Si Binary Phase Diagram Evaluation. Cite this page. Citation Phase diagram available to subscribers; If you are having trouble in accessing SpringerMaterials remotely during the COVID-19 pandemic,

Modified Al-Si alloy phase diagram [16]. | Download ...

Al-Si diagram is a eutectic diagram where solid solubility at least of aluminium in silicon is negligible, and maximum solubility of silicon in aluminium (at eutectic temperature) is 1.65%. The eutectic composition is 12.7% silicon. Fig. 3.18 illustrates this diagram and photomicrographs of alloys at room temperature.

35 Al Si Phase Diagram - Wiring Diagram Database

Aluminum-silicon phase diagram of A390 alloy produced by Thermo-Calc ® software, showing the expected iron (Fe), copper (Cu), manganese (Mn), and magnesium (Mg) content usually found in these alloys.

people walking on snow covered field near brown concrete building during daytime

Phase Diagram for Al-Si. Move the mouse over the phase diagram to view temperature and composition at any point. View micrographs for the Al-Si system. List all systems with phase diagrams. 2004-2021 University of Cambridge. Except where otherwise noted, content is licensed under a

Solved: Refer To The Al-Si Phase Diagram Below. Assume The ...

The aluminium-silicon phase diagram. | Download Scientific ...

Journal of Phase Equilibria - Indicates key paper 08Fra: W. Fraenkel, "Silicon-Aluminum Alloys",Z. Anorg.Chem., 58, 154-158 (1908) in German.(Equi Diagram ...

Al Si Phase Diagram â€” UNTPIKAPPS

The Al-Si Phase Diagram. Metallographic Assessment of Al-12Si High-Pressure Die Casting Escalator Steps. Color Metallography and Electron Microscopy Techniques Applied to the Characterization of 413.0 Aluminum Alloys. Structure characterization and precipitation in two Al-Mg-Si-Mn casting alloys.

Solved: Consider The Al-Zn Phase Diagram Provided On The N ...

Al-Si alloys differ from our "standard" phase diagram in that aluminium has zero solid solubility in silicon at any temperature. This means that there is no beta phase and so this phase is "replaced" by pure silicon (you can think of it as a beta phase which consists only of silicon).. So, for Al-Si alloys, the eutectic composition is a structure of alpha+Si rather than alpha+beta.

Solved: For This Al-Mg Binary Phase Diagram, At 7% Al Allo ...

Ag-Al-Si_500C SGnobl: Ag-Al-Si_liquidus SGnobl. Ag-Al-Sn_25C SGnobl: Ag-Al-Sn_liquidus SGnobl: Ag-Al-Sn_1000K SGTE 2017: Ag-Al-Ti_1000C SGnobl: Ag-Al-Zn_liquidus SGnobl: Ag-Au FScopp: Ag-Au FSlead: Ag-Au FTlite: Ag-Au SGnobl: Ag-Au SGsold: Ag-Au SGTE 2014: Ag-Au SGTE 2017: Ag-Au SGTE 2020: Ag-Au-Bi_230C SGnobl: Ag-Au-Bi_20atpctAg SGsold. Ag-Au ...

people walking on sidewalk near body of water during daytime

Click on the system to view its phase diagram. The number of micrographs available for each system is given in brackets, and clicking on the link will display a list of them. Al-Cu [ 21 micrographs] Al-Mg [ 4 micrographs] Al-Si [ 2 micrographs] Al-Sn [ 1 micrographs] Bi-Cd [ 4 micrographs] Bi-Sn [ 30 micrographs] Cu-Be [ 3 micrographs]

Al-Si - Phase Diagram

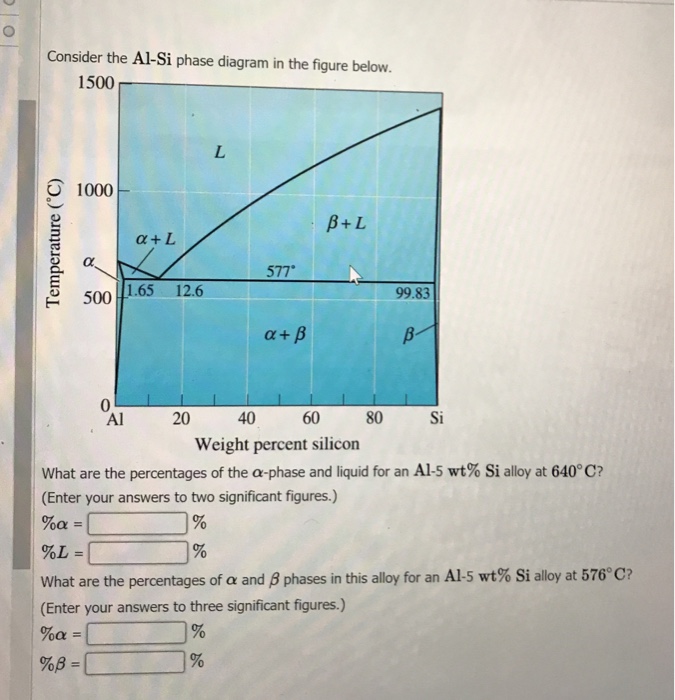

The Science and Engineering of Materials (7th Edition) Edit edition Solutions for Chapter 11 Problem 27P: Consider the Al-Si phase diagram. What are the percentages of the α-phase and liquid for an Al-5 wt% Si alloy at 620, 600, and 578°C? What are the percentages of α and β phases in this alloy for an Al-5 wt% Si alloy at 576 and 550°C?
