N2006P PID TEMPERATURE CONTROLLER The Installation & Wiring Diagrams Input type can be RTD input (Pt100, Cu50) or thermocouple input (T, R, J, B, S, K, E and Time proportioning output can be relay contact output or voltage pulse output Two alarm outputs can perform double - limit alarm or three - position control Posts Related to Pid Temperature Controller Wiring Diagram. Rosemount Temperature Transmitter Wiring Diagram. Mishimoto Fan Controller Wiring Diagram. ... Salt Dogg Spreader Controller Wiring Diagram. Hallman Boost Controller Diagram. Simple Solar Charge Controller Circuit Diagram. 3rd Grade Temperature Worksheet.
Here are a number of highest rated Pid Controller Wiring Diagram pictures upon internet. We identified it from trustworthy source. Its submitted by management in the best field. We resign yourself to this kind of Pid Controller Wiring Diagram graphic could possibly be the most trending topic bearing in mind we part it in google gain or facebook.
Pid temperature controller wiring diagram
to get Book file PDF Td4 Snr Ssr Controller Wiring Diagram. MyPin TA4 SNR Controller for UDS. November 28th, - MyPin TA4 SNR. The MYPIN TA4 is a PID temperature control device similar to the Here is the pin out schematic for the wiring of the screw terminals on the.Jun 09, · All of the wiring diagrams I've seen for v are wired similar to this ... Based Temperature Process Control Specifications - Installation and Operating Instructions ... wire the controller per the appropriate wiring diagram listed on page 6. PANEL CUTOUT DIMENSIONS CN730 CN710 ... the Control Mode, the PID parameters can be accessed in the Regulation MYPIN PID Temperature Controller for Bullet Casting - Building and Wiring the Controller. Using the TA4-SSR PID Controller on my Lee Pro 4 20lb Lead Casting ...
Pid temperature controller wiring diagram. 8) Mount PID controller to base. 9) Run a pair of wires from screws across from White Plug Wire and the Black Plug Wire to PID AC/DC input contacts 1 and 2 on my controller, polarity does NOT matter with AC power. 10) Run a wire from PID SSR+ (contact #6) to SSR A1+. 11) Run a wire from PID SSR- (contact #7) to SSR A2-. PID or alarm function would be an internal function. Information flows from an input func-tion to an internal function to an output func-tion when the controller is properly configured. A single PM controller can carry out several functions at the same time, for instance (but not limited to), PID control, checking for a limit Dec 29, 2019 · Pid Temperature Controller Wiring Diagram– wiring diagram is a simplified good enough pictorial representation of an electrical circuit.It shows the components of the circuit as simplified shapes, and the skill and signal contacts in the midst of the devices. Wiring Guide 2018. Electric Brewing Supply's wiring guide, covering the assembly of our DIY and Complete DIY control panel kits. Here you will find our draft for 2018 and forward designs; the final revision is expected for Thanksgiving 2018. These are designs based on the BCS 482 controller and our own EBSP200 series PID.
The PID has 12 numbered screw terminals and the silver label diagram shows where the SSR and the Thermocouple (TC) are wired to these. However, it's not instantly clear what to do with the SSR and how and where to power everything. Hopefully my digram below will make things a little clearer. PID Wiring Diagram Temperature Delta Control • Auto tuning PID with manual override • 4-digit LED display and input knob • Flexible configuration of backup sensor and ... matching the colors shown in the wiring diagram. 6. Connect power wires to terminals 1 and 2. Transformer requirements are 24 volts AC at 40VA, Class II. Visit us on face book and subscribe to this page.Please use caution when wiring your own PID controller. They can be found on google and are relatively inexp... Pid Temperature Controller Wiring Diagram. Collection of pid temperature controller wiring diagram. A wiring diagram is a simplified standard photographic representation of an electric circuit. It reveals the components of the circuit as streamlined shapes, and the power and also signal connections in between the devices. A wiring diagram typically gives info regarding the relative…
3116 and 3216 Temperature Controllers Engineering Handbook Part No HA027986 Issue 2.0 May-04 1-5 1. Installation and Basic Operation 1.1 What Instrument Do I Have? Thank you for choosing this Temperature Controller. This Chapter takes you through step by step instructions to help you to install, wire, configure and use the controller. Pid Controller Schematic. Here is a design schematic for a PID controller for use either electric lead pot or lubersizer. If you do not stand for something, you stand for nothing. You can't spell "restore" with h-y-p-o-c-r-i-s-y. The further a society drifts from the truth, the more it will hate those that speak it. 01-27-2013, 01:20 PM #2. 2.3 After auto tuningisfinished,a new set of PID parameter is generated internally to replace the existing PID parameter. * Auto tuning allows the controller to automatically adjust the PID parameter, and is suitable for use when temperature control is not accurate enough. 2.4 ATVL=auto tuning offset,and it will be deduced from SV Jan 06, 2020 · Pid Wiring Diagram With Heat Sink Worksheet And Wiring . Wiring Rex Diagram Thermostat C100fk02 Wiring Diagram . Details About Xmt7100 Pid Temperature Controller Programmable Build In Relay With Led Digital . 12 Segments Ramp Soak Led Pid Temperature Controller Generation Of Ramp Soak Temperature Controller Buy Temperature Controller Pt100 ...
(1) PID Temperature controller, DIN, SSR Control Output, #SYL-2352 = $44.50 (1) Solid State Relay SSR, # RS1A40D25 = $15 (1) Aluminum project box, #CPTbox16 = $22.32 (1) K type High Temp Probe #WRNK-191 = $21.62. All prices as of June 2011. The project box comes with the hole already cut to receive the PID control unit.

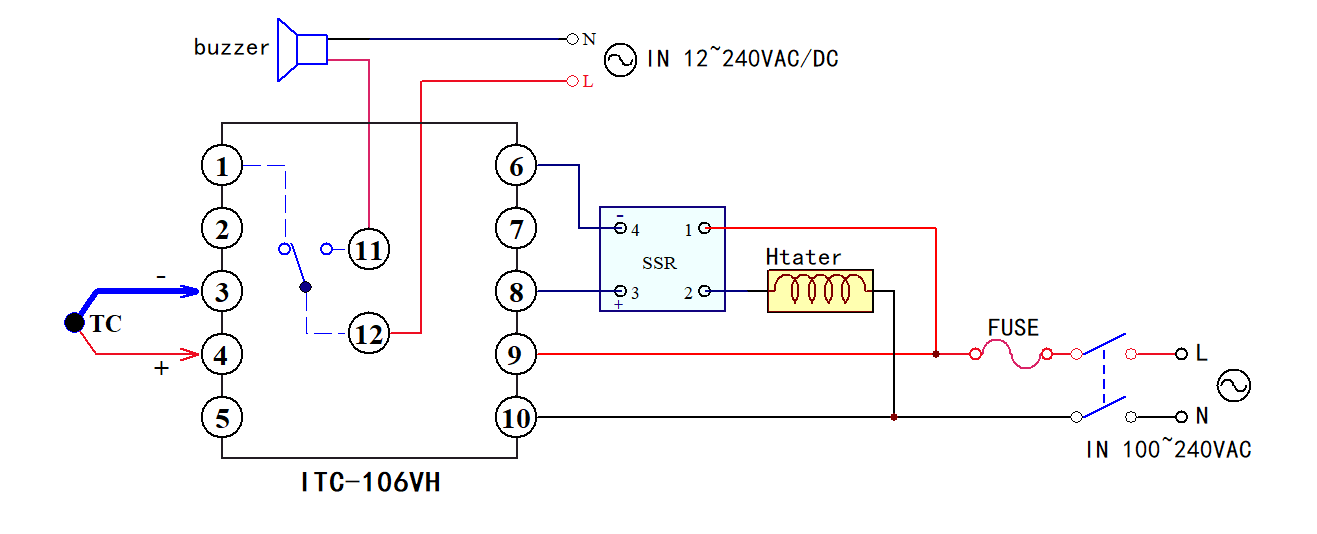

This video describes the Inkbird ITC 106VH PID and how to wire it for your system. There are many ways to wire these since they have many different function....
A proportional-integral-derivative controller (PID controller or three term controller) is a control loop feedback mechanism (controller) widely used in indu...
TA series of temperature controller is available for many TC or RTD input, adopt some advanced techonology such multi digital filter circuit, autotune PID, fuzzy PID that make it is very precise, stable, strong anti-interference and simple operation. The instrument is widely applied to Name of parts 1.Measured value (PV)/Various parameter symbols
For installing the controller 1.Prepare the panel cutout with proper dimensions as shown: DIMENSIONS (in mm) 2.Remove the clamp from the controller 43and push the controller into the panel cutout. Secure the controller in its place by pushing the clamp on the rear side. 3.For proper sealing, tighten the screws evenly with required torque. 10 48 48
Digital temperature controller circuit and working. Fig. 2 shows circuit diagram of the digital temperature controller. The circuit is built around microcontroller PIC16F877A (IC1), precision thermocouple amplifier AD8495 (IC2), K-type thermocouple (connected at CON3), 16×2 LCD (LCD1), single-changeover relay (RL1) and a few common components.
4. Terminal Wiring (back view) 1. Features The PID control with artificial intelligent enhancement for precision temperature control. Auto-tuning function can find the best PID parameter automatically. On/off control mode for refrigerator, motor and solenoid valve control application.
Feb 24, 2018 - A proportional–integral–derivative controller (PID controller or three term controller) is a control loop feedback mechanism (controller) ...
Step 9: Check the Programming in the PID. Now that your temperature sensor is calibrated, you need to check the programming in the PID. Out of the box, my PID has a SV (Set Value) of 50.0°C and the output set to Heating. So, to recap, PV is the Process Value - in this case it is the currently measured temperature.
EZ-ZONE PM Integrated PID Controller User's Guide, part number: 0600-0059-0000 Describes how to connect and use an advanced PID loop controller. This particular model can be ordered with two loops of PID control and integrated limit controller with up to 4 outputs. Like all PM controllers, it comes with Standard Bus communications while also ...
Dual Digital PID Temperature Controller Thermostat Thermal Thermocouple-buy at a low prices on Joom e-commerce platform
Attention:1.Important: Dual lines PT100 Sensor #3 and #4 terminals are the input ports for dual lines PT100 sensor, and #4 and #5 terminals should be connect...
is no gap among the controller, panel and the adapter and then fasten the two screws on the adapter with the torque of 0.29N to 0.39N. Be sure the ambient temperature is within the stated working range in the manual, especially when there are two or more temperature controllers installed. 4. Wiring Diagram
MYPIN PID Temperature Controller for Bullet Casting - Building and Wiring the Controller. Using the TA4-SSR PID Controller on my Lee Pro 4 20lb Lead Casting ...
