In the TCP state transition diagram, why do we have the TIME-WAIT state and why is its value equal to 2MSL. ... written 3.6 years ago by awari.swati831 ♦ 870: The two reasons for the existence of the TIME-WAIT state and the 2SML timer: If the last ACK segment is lost, the server TCP, which sets a timer for the last FIN (Finish) bit set ... TCP Connection Termination TCP State Transition Diagram Flow Control How does TCP control its sliding window ? Connection Termination Note that after the server receives the FIN_WAIT_1, it may still have messages -- thus, connection not yet closed. TCP State Transitions An Simpler View of the Client Side Simpler Server Model More about ...

This lecture is taught by Sachin Shah M.Tech. (CSE) IIT Guwahati, Co-founder of Success GATEway (www.successgateway.co.in) _____...

Tcp state transition diagram

File:Tcp state diagram fixed.svg. Size of this PNG preview of this SVG file: 796 × 600 pixels. Other resolutions: 319 × 240 pixels | 637 × 480 pixels | 1,019 × 768 pixels | 1,280 × 965 pixels | 2,560 × 1,929 pixels | 1,084 × 817 pixels. This is a file from the Wikimedia Commons. Information from its description page there is shown below. Tcp State Transition Diagram. A TCP connection goes through a series of states during its lifetime. Figure 8.28 shows the state transition diagram. Each state transition is indicated by an arrow, and the associated label indicates associated events and actions. Connection establishment begins in the CLOSED state and proceeds to the ESTABLISHED ... Share Copy sharable link for this gist. Clone via HTTPS Clone with Git or checkout with SVN using the repository's web address. Learn more about clone URLs. Download ZIP. TCP/IP State Transition Diagram. Raw. TCPIP State Transition Diagram.md. Click here to download a PDF copy. Sign up for free to join this conversation on GitHub .

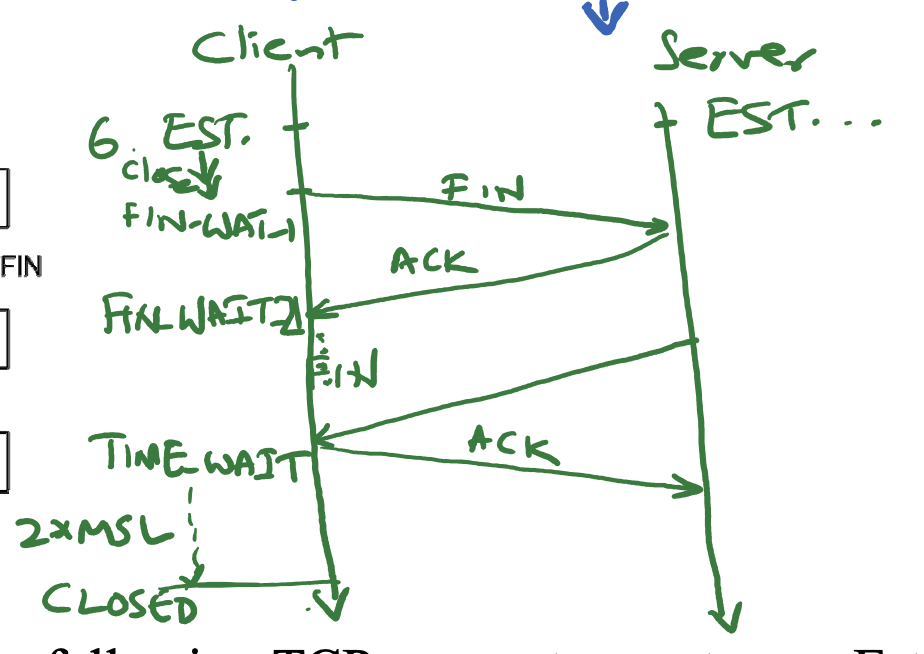

Tcp state transition diagram. TCP state transition diagram. The first thing to note in this diagram is that a subset of the state transitions is "typical." We've marked the normal client transitions with a darker solid arrow, and the normal server transitions with a darker dashed arrow. How mechanism works In TCP : Step 1 (FIN From Client) -. Suppose that the client application decides it wants to close the connection. (Note that the server could also choose to close the connection). This causes the client to send a TCP segment with the FIN bit set to 1 to the server and to enter the FIN_WAIT_1 state. The Transmission Control Protocol (TCP) is a protocol used on top of IP to help guarantee a reliable stream of data from the sender to the receiver. The purpose of this assignment is to get you familiar with how TCP works. A State Transition Diagram. The figure below shows a state transition diagram for TCP. TIME_WAIT is an often misunderstood state in the TCP state transition diagram. It's a state that some sockets can enter and remain in for a relatively long length of time, if you have enough socket's in TIME_WAIT then your ability to create new socket connections may be affected and this can affect the scalability of your client server system. There is often some misunderstanding about how and ...

A TCP connection progresses through a series of states during its lifetime. The following diagram illustrates the possible states for a TCP connection and how the states transition based on various events from either the network or from the local TCP sockets application. Figure 1. TCP state transition diagram. Table 1. TCP State Transition Diagram zurück. zurück ... TCP State Transition Diagram zurück. zurück Download scientific diagram | TCP transition-state-diagram. from publication: Towards Bottleneck Identification in Cellular Networks via Passive TCP Monitoring | The bandwidth demand of today's ... TCP State Transition Diagram. Simultaneous Open - when both ends send SYN simultaneously. Simultaneous Close - when both ends send FIN simultaneously. There are 11 different states defined for a connection and the rules of TCP dictate the transitions from one state to another, based on the current state and the segment it received.

Make a copy of pg 241 (the TCP State Transition Diagram), which is one of the most important pages ever printed. A good understanding of Chapter 18 is also important. Note that volume 1 is the only one most people need; volumes 2 and 3 delve into details about implementing TCP/IP stacks and specific (and rare) application protocols. Explain the transition states of TCP with a neat diagram. To keep track of all the different events happening during connection establishment, connection termination, and data transfer, TCP is specified as the finite state machine shown in Figure. The figure shows the two FSMs used by the TCP client and server combined in one diagram. TCP is described in RFC 793. Principle of establishing a TCP connection, the state diagram. Here are the steps of connecting and libration of a TCP connection. The client application opens a connection to the server by sending a TCP segment which only the header is present (no data). This header contains a flag SYN stands for "Synchronize" and ... Based on File:Tcp state diagram fixed.svg. Author. Sergiodc2, Marty Pauley, Scil100. This is a retouched picture, which means that it has been digitally altered from its original version. Modifications: Modified version of TCP state diagram, with receipt of ACK added as requirement for CLOSING->TIME_WAIT and LAST_ACK->CLOSED transitions.

Tcp State Transition Diagram Digital Transmission

The transmission Control Protocol (TCP) is one of the most important protocols of Internet Protocols suite. It is most widely used protocol for data transmission in communication network such as internet. Features. TCP is reliable protocol. That is, the receiver always sends either positive or negative acknowledgement about the data packet to ...

5 2 Reliable Byte Stream Tcp Computer Networks A Systems Approach Version 6 2 Dev Documentation

appl: state transitions taken when application issues operation recv: state transitions taken when segment received send: what is sent for this transition TCP state transition diagram. Reprinted from TCP/IP Illustrated, Volume 2: The Implementation by Gary R. Wright and W.RichardStevens,

Cs558 Sylabus

Figure 18.12 TCP state transition diagram. Figure 18.13 shows the normal TCP connection establishment and termination, detailing the different states through which the client and server pass. It is a redo of Figure 18.3 showing only the states. Figure 18.13 TCP states corresponding to normal connection establishment and termination.

Let Me Start Tcp State Transition Diagram

Table 151: TCP Finite State Machine (FSM) States, Events and Transitions. State. State Description. Event and Transition. CLOSED. This is the default state that each connection starts in before the process of establishing it begins. The state is called "fictional" in the standard.

Aj Syllabus Tcp State Transition Diagram

TCP/IP State Transition Diagram (RFC793) Gordon McKinney (23 Feb 2002) A connection progresses through a series of states during its lifetime. The states are: LISTEN, SYN-SENT, SYN-RECEIVED, ESTABLISHED, FIN-WAIT-1, FIN-WAIT-2, CLOSE-WAIT, CLOSING, LAST-ACK, TIME-WAIT, and the fictional state CLOSED.

Transmission Control Protocol Tcp The Advanced Stuff Ictshore Com

The TCP on the system that receives this final FIN (the end that did the active close) acknowledges the FIN; A FIN occupies one byte of sequence number space just like a SYN. Therefore, the ACK of each FIN is the sequence number of the FIN plus one. TCP State Transition Diagram¶

Chapter 12 Transmission Control Protocol Tcp Ppt Video Online Download

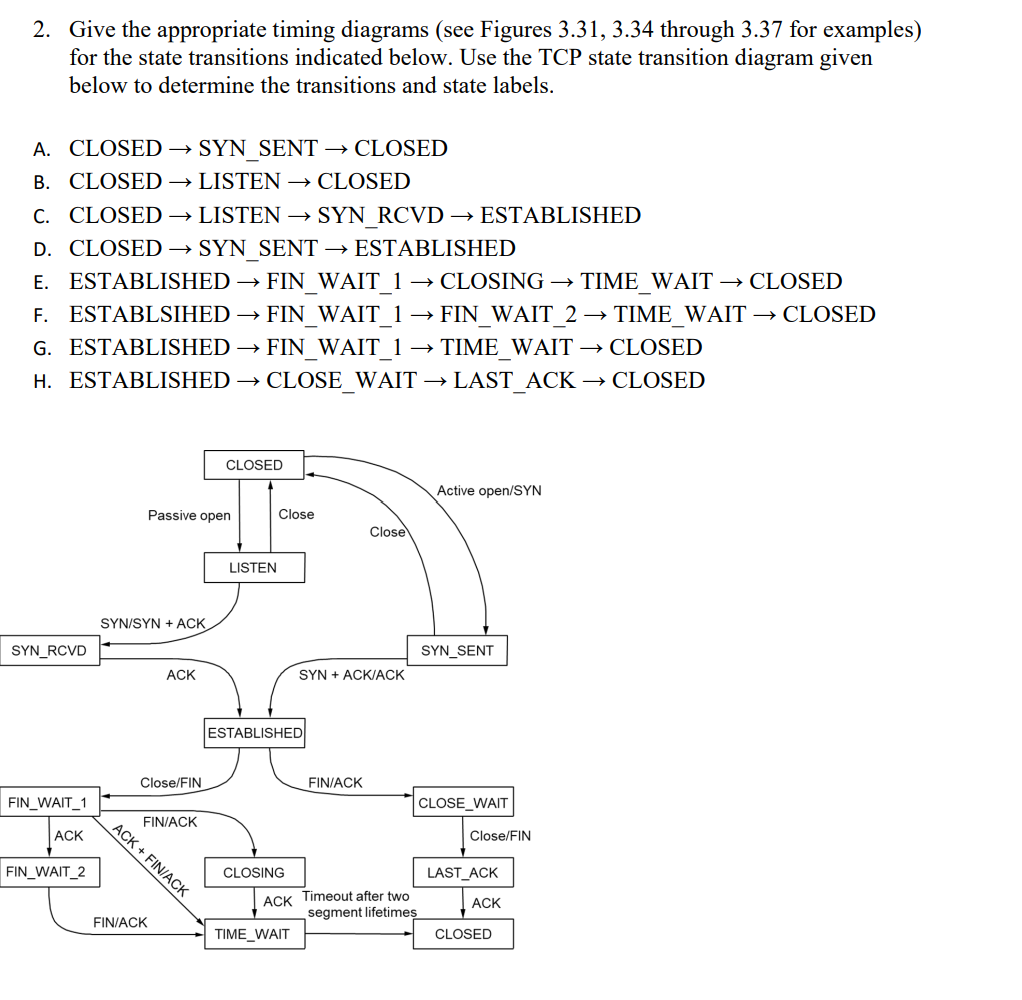

State transition diagram for TCP connection establishment The TCP connection establishment protocol can be described using a state transition diagram as follows: Explanation of the states: CLOSED = initial state. The client has no TCP connection. The server is ...
