Vacuum filtration apparatus, adapted for laboratory work, is often used to isolate the product of synthesis of a reaction when the product is a solid in suspension.The product of synthesis is then recovered faster, and the solid is drier than in the case of a simple filtration. Other than isolating a solid, filtration is also a stage of purification: the soluble impurities in the solvent are ... Steps in vaccum filtration set-up include: 1) clamp side-arm flask to a ring stand, 2) add a buchner funnel with a rubber funnel adaptor, 3) obtain a correctly sized filter paper in the funnel, 4) place filter paper in funnel, 5) connect side-arm flask to a vacuum source, 6) wet the paper with a small amount of the solvent to be used in the filtration and turn on the vacuum source, 7) pour the ...

The Quantum X uses water to capture dirt, debris, germs and bacteria instead of HEPA filters that clog. It also has an 18“ Telescoping Head to reach the places were dirt actually hides! In addition, it picks up dry and WET spills and can remove pet accidents. All at an affordable price!

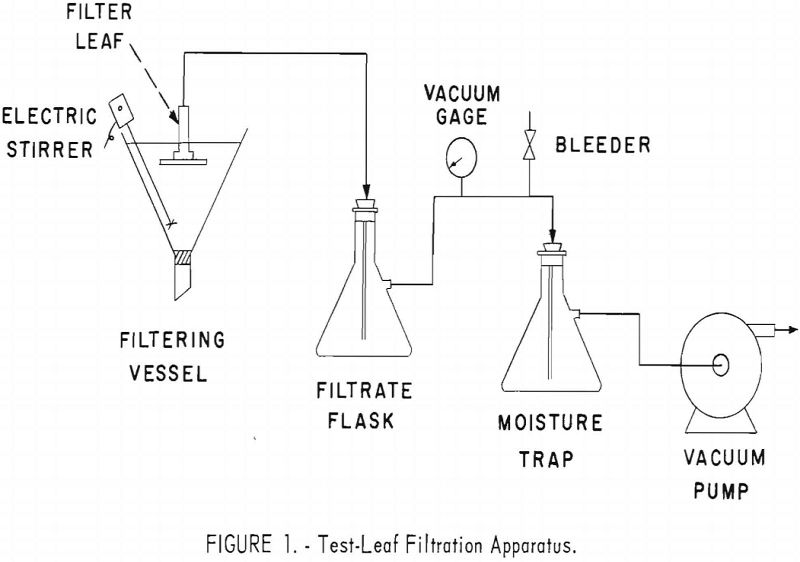

Vacuum filtration apparatus diagram

Suction (or vacuum) filtration uses a side arm conical flask called a Buchner flask and a porcelain, ... Diagram showing suction filtration apparatus ... A diagram of how to fold fluted filter paper is shown below. Vacuum Filtration. Vacuum filtration is used primarily to collect a desired solid, for instance, the collection of crystals in a recrystallization procedure. Vacuum filtration uses a Buchner funnel and a side-arm flask. Vacuum filtration is faster than gravity filtration, because the ... Half equations quiz questions | Footprints-Science - GCSE science animations and quizzes - Half equations are used to represent reactions at electrodes - Knowing the symbol for an electron in a half equation - Using a half equation to deduce whether a reaction is oxidation or reduction - Whether a half equation would be at the positive or negative electrode - Balancing half equations at the ...

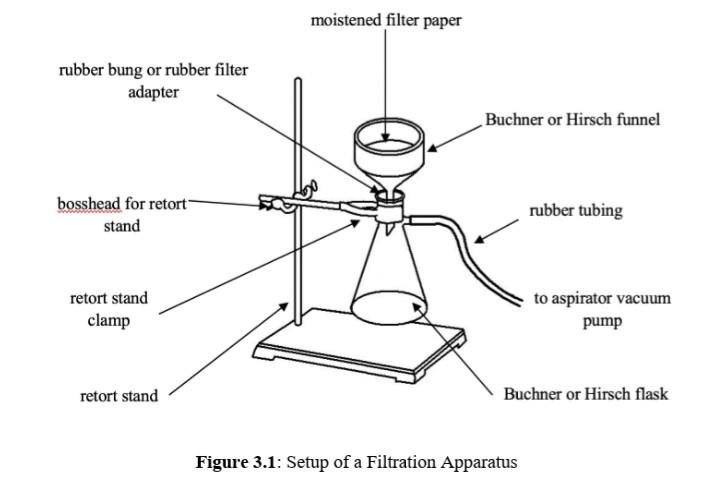

Vacuum filtration apparatus diagram. Vacuum work can be carried out on a Schlenk line, an apparatus used for work with air-sensitive compounds, as long as proper technique is used. The sealed glass tubes can be placed either inside pieces of brass or iron pipe capped at one end with a pipe cap or in an autoclave containing some of the reaction solvent (to equalize the pressure inside and outside the glass tube). The tubes can be ... Pre-weigh a 25 mL round bottomed flask. Construct the vacuum filtration apparatus. The vacuum source is the water aspirator. Turn the water on “FULL” to begin. When the tea solution is hot, filter the liquid phase through the Hirsch funnel and into the 25 mL filter flask. Principle[edit]. Diagram of the vacuum filtration apparatus. By flowing through the aspirator, water will suck out the ...‎Principle · ‎Uses Photo name: Filtration Diagram Picture category: Chemistry Image size: 58 KB Dimensions: 622 x 600 Photo description: This diagram labels the typical parts of a filtration experiment.Included in the equipment labeling are: buchner funnel, moistened filter paper, porous plate (plate with holes in it), rubber tubing, buchner flask and rubber bung.

A vacuum filtration is often not suitable for solvents with low boiling points i.e. diethyl ether, dichloromethane or boiling solvents. The solvent evaporates in the vacuum and dissolved solids precipitate, clogging up the pores of the filter paper. 8. If you have a very fine precipitate, it is advisable to use some filter aid like diatomaceous ... Buchner funnel filtration is used in vacuum filtration. A Buchner funnel incorporates a water aspirator for filtration. The Buchner funnel is flat at the bottom, porous and porcelain bowl, circular at the base, and with a small stem. The Buchner funnel stem has a rubber stopper that is inserted into the open end of a filter flask, on the sidearm. Download scientific diagram | Vacuum filtration apparatus. from publication: Preliminary Results from Unsaturated Zone Studies in Unconfined Unconsolidated Coastal Aquifers | Chloride ... Stainless steel filter manifold system. Vacuum filtration Equipment Grade MV 050/0. Vacuum Filtration Equipment GV 050 Series. Vacuum filtration equipment, Grade GV 100. Vacuum filtration equipment, GV 025 series. Vacuum or pressure filtration apparatus, Typ 16510, PC. Vacuumfiltration unit, glass. Glass-Fibre Filter.

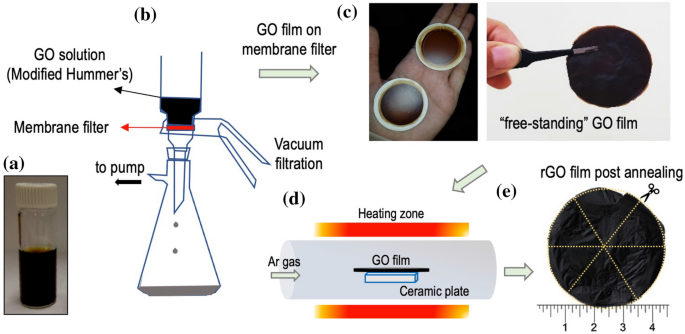

7. Always release the vacuum before shutting off the water. Figure 1 Schematic showing the vacuum filtration apparatus.1 page 27 Sep 2021 — Suction filtration (vacuum filtration) is the standard technique used ... aspirator (indicated with an arrow), c) Diagram of an aspirator. Half equations quiz questions | Footprints-Science - GCSE science animations and quizzes - Half equations are used to represent reactions at electrodes - Knowing the symbol for an electron in a half equation - Using a half equation to deduce whether a reaction is oxidation or reduction - Whether a half equation would be at the positive or negative electrode - Balancing half equations at the ... A diagram of how to fold fluted filter paper is shown below. Vacuum Filtration. Vacuum filtration is used primarily to collect a desired solid, for instance, the collection of crystals in a recrystallization procedure. Vacuum filtration uses a Buchner funnel and a side-arm flask. Vacuum filtration is faster than gravity filtration, because the ...
