In a primary-secondary piping arrangement, which water temperatures should be taken off the primary first? Always take the highest water temp off the primary first. The primary temp will drop as more secondaries are taken off. 2-Way Injection • How does 2-way valve injection work? 2-way Primary Secondary (P-S) hydronic piping is a common piping scheme in today’s hydronic heating and cooling systems. This short series of blogs will provide examples of piping schemes which will support the reduction of hot water return temperatures to enhance the value of condensing boilers. The first article will just review the rules of the ...

Piping Air / Dirt Separator Expansion Tank Secondary Pumps P-B-1 & P-B-2. 2 REFERRING TO PUMPS HEATING P-CH-1 P-CH-2 AS-2 ET-2 P-3 P-4 FCU FCU FCU FCU FCU FCU CH-1 CH-2 B-1 P-B-1 B-2 P-B-2 AS-1 ET-1 P-1 P-2 FCU COOLING Primary Pumps Secondary Pumps Secondary Pumps Primary Pumps AIR/DIRT SEPARATORS

Primary secondary piping diagram

multiple boiler – primary/secondary piping crest . from system relief valve hot water generator water generator circulator boiler drain (typical) boiler pump (typical) ball valve (typical) air seperator drain port (typical) system circulator to system make up water back flow preventer pressure reducing valve pressure 1 Nov 2004 — Primary/secondary (P/S) piping has been used in the hydronic heating industry for over four decades. The essential design detail has always ... Incorrect piping layout morphings primary/secondary piping and a classic This increases heat loss from the boiler jacket and creates.Radiant Heating Installation Manual For Residential and Commercial Installations. Wiring Diagram Roth Shunt Systems Boiler with Heat Exchanger and Variable Speed Injection Pump Using the Chart.

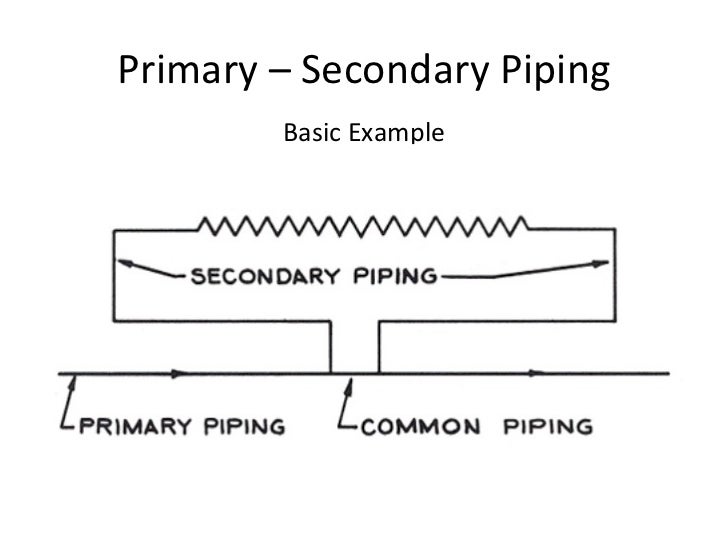

Primary secondary piping diagram. Properly designed primary/secondary systems work. Still, in my opinion, there are better options that provide the benefits of primary/secondary piping, but with simpler and less expensive piping configurations (as shown in Figure 3).. This system connects the boilers to a header system that leads to a hydraulic separator. A parallel primary/secondary piping configuration provides the same water temperature to each secondary circuit: This benefit is achieved at the expense of more complicated and costly piping. In addition, both series and parallel primary/secondary systems require a primary circulator. All primary-secondary control methods are finally referenced to use of a “common piping” inter-connection between the primary and secondary circuits. Common piping is defined as a length of piping common to both the primary and secondary circuit flow paths; purposely designed to extremely low pressure drop. These piping diagrams are an example of possible configurations which may not ... Section 3; Starting on Page 10: Primary Secondary Piping System Boilers.85 pages

14 Dec 2013 — Figure 2 shows a simplified schematic of a primary/secondary piping system. At the bottom we see the primary piping (sometimes referred to ... PRIMARY SECONDARY - SYSTEM Part load - stage chillers and pumps to keep source flow greater than load flow Low DT syndrome forces multiple chillers to run even at plant load less than 1 chiller’s capacity. Pump energy 12 Primary/ secondary piping is a versatile piping method that's increasingly being used as the backbone of modern multi-load/multi-temperature hydronic systems. The concept of primary/secondary (P/S) piping has been around since the mid 1950s. Until the last decade, it was used mostly for larger commercial heating and chilled water cooling systems. Boiler Heating Primary Loop / Boiler Secondary Loops. Primary Loop Piping is commonly used in boiler heating systems that run needing multiple temperatures ...

Incorrect piping layout morphings primary/secondary piping and a classic This increases heat loss from the boiler jacket and creates.Radiant Heating Installation Manual For Residential and Commercial Installations. Wiring Diagram Roth Shunt Systems Boiler with Heat Exchanger and Variable Speed Injection Pump Using the Chart. 1 Nov 2004 — Primary/secondary (P/S) piping has been used in the hydronic heating industry for over four decades. The essential design detail has always ... multiple boiler – primary/secondary piping crest . from system relief valve hot water generator water generator circulator boiler drain (typical) boiler pump (typical) ball valve (typical) air seperator drain port (typical) system circulator to system make up water back flow preventer pressure reducing valve pressure
